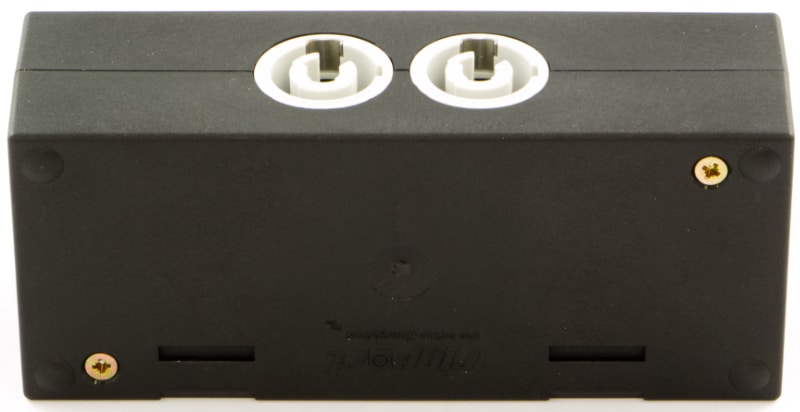

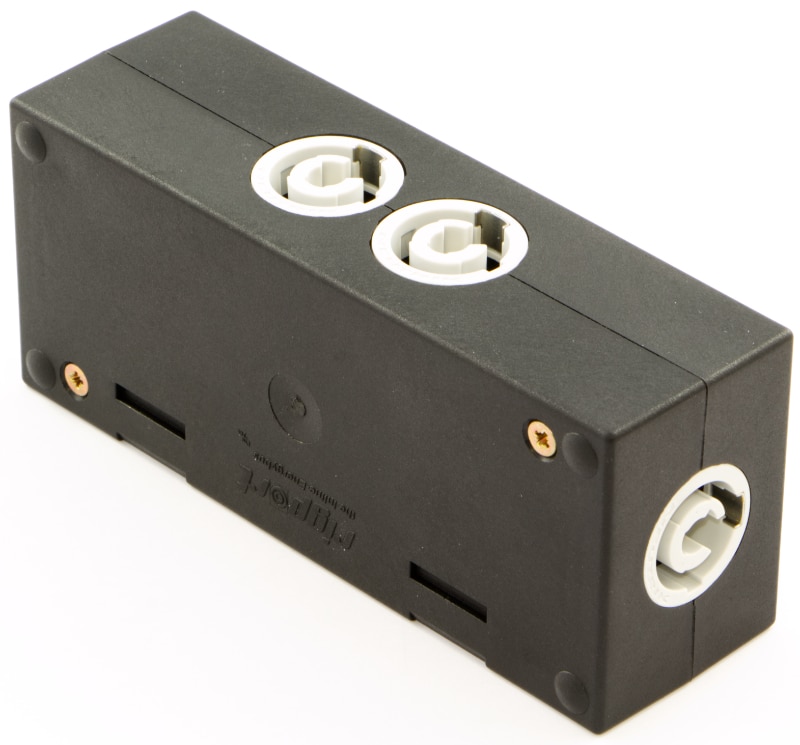

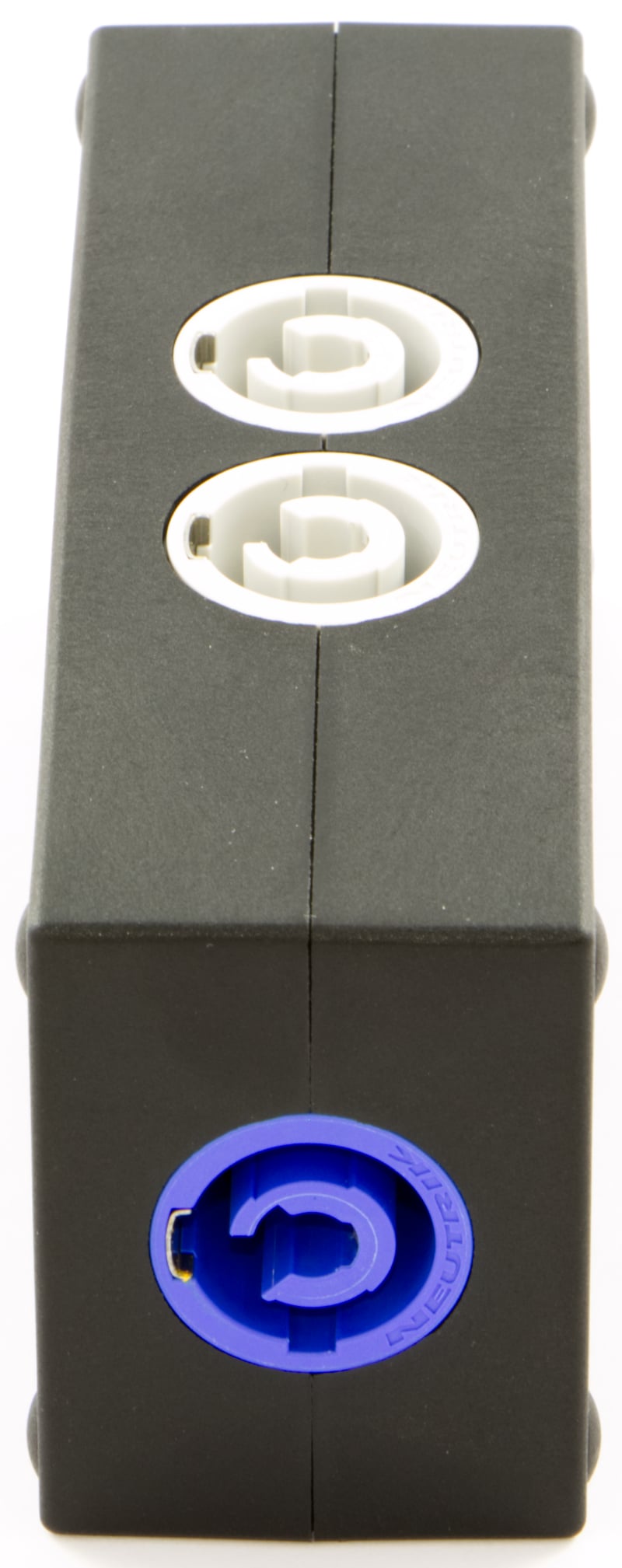

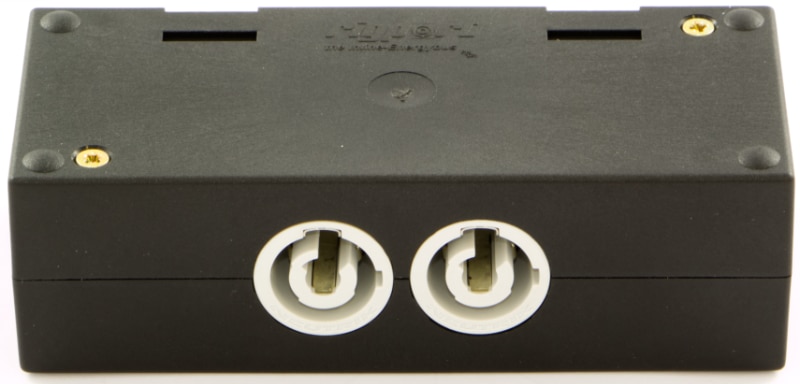

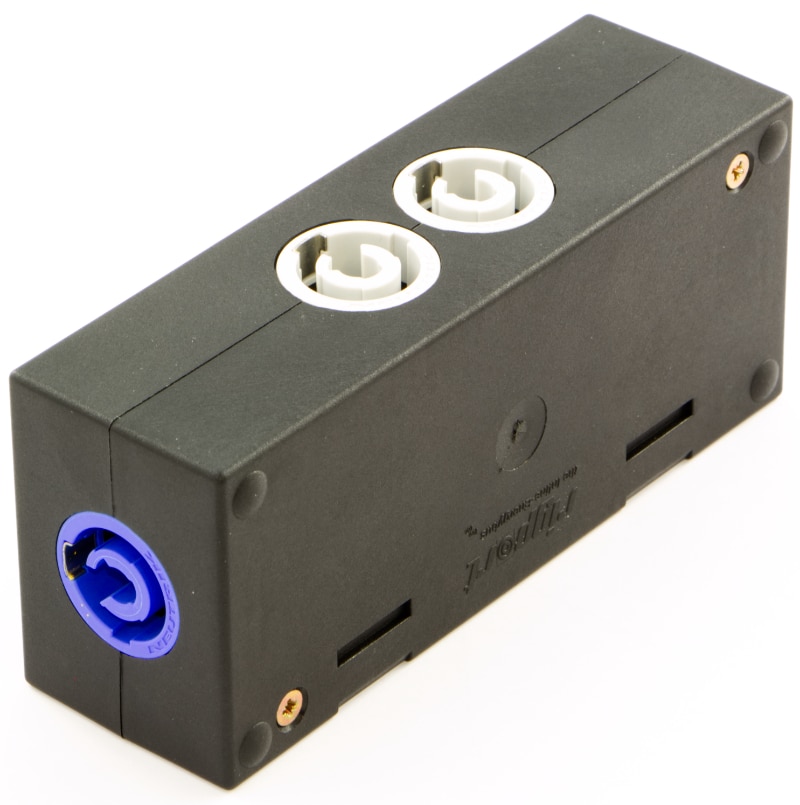

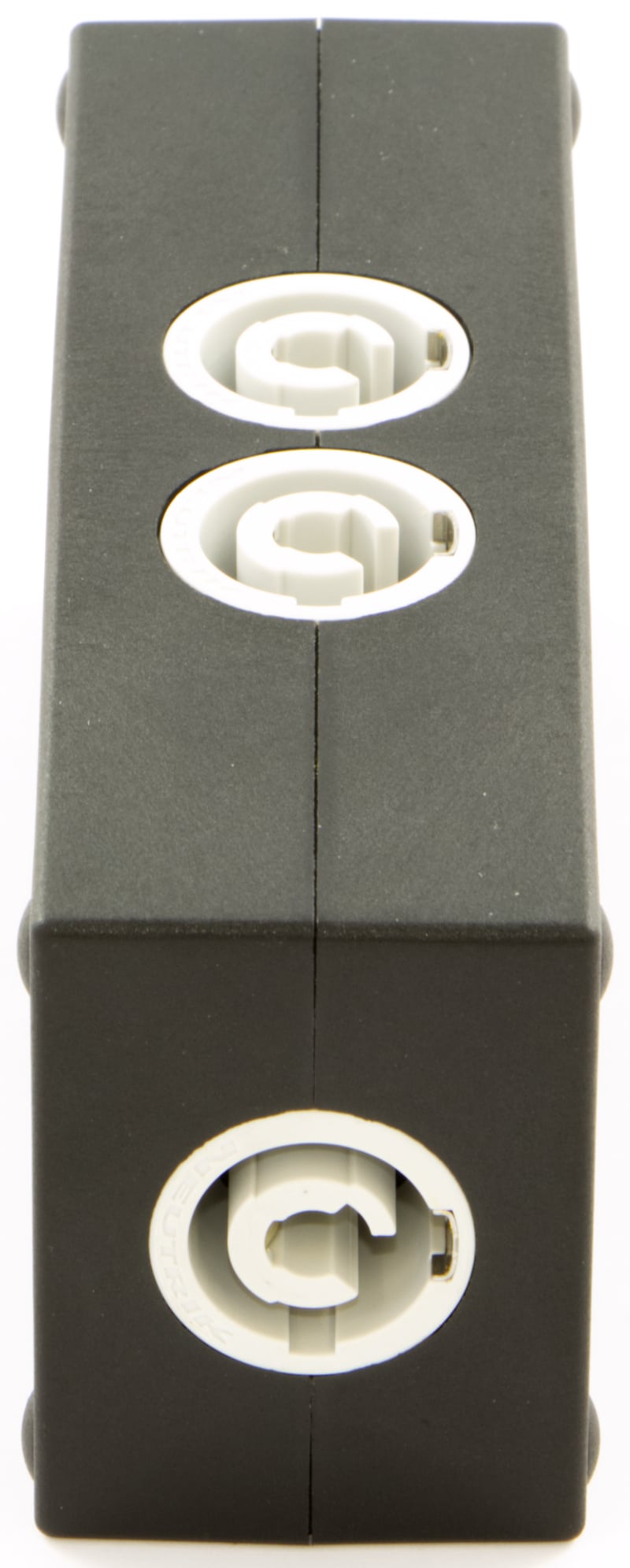

RigPort L1 Powercon splitter


Rigport L1 powercon splitter is a 3-way splitter, which can, easily, and securely be attached to a truss tube, with the optional Truss Clamp. The L1 has a black, compact, and lightweight (less than 300g) housing, and was designed to be hidden in the background. The sturdy housing can withstand a fall from certain heights.


  • Discreet, small, and lightweight design
  • Safe, and fixed locking device
  • Rugged housing made of impact-resistant plastic
  • Quick, and easily mountable with RigPort Clamps (except L1S4 line)
  • Positionable
  • Easy to combine
  • RigPort safety cable available for secondary securing
SKU: RigPortL1 Category: Tag:



1x Powercon-In
2x Powercon-Out
1x Powercon-Through Out

Technical data:

Maximum current: 16A
Cross section: 2,5mm2
Weight: 170g
Maximum temperature: 55°C
HS Code: 85369010
Material: Polyamide
Dimensions: 132,5x43x56mm
Protection class: IP20

Rigport L1 powercon splitter manual German

Additional information

Weight 0.17 kg
Dimensions 13.25 × 4.3 × 5.6 cm
Input Connections


IP Rating


Max. Current
