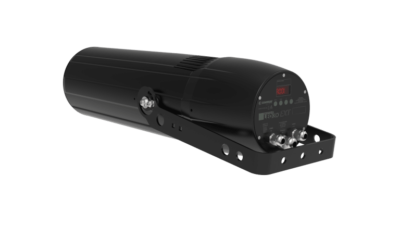

Coemar LEDko EXT Dual gobo Outdoor LED profile Tungsten/Daylight/Fullspectrum RGBLA

The LEDko EXT family has been designed to meet the needs of architects and lighting designers, who were looking for weatherproof lighting fixtures suitable not only for temporary, but also for permanent outdoor installations.

This unique IP 65 LED Profile Spot Light includes a dual gobo rotator engine controllable by DMX: in this way the two gobos can be used at the same time in counter-rotation to create impressive dynamic effects such as water, fire, rain, etc.
The four-blade framing system is however available as an accessory and can be used instead of the dual gobo rotator.

A zoom lens system ranging from 17° to 38° (FullSpectrum version) and from 14° to 35° (fixed white version), bare ends power input cable and in/out 5 pin XLR connectors for DMX signal rated IP 65 complete the product profile. The fixture has in addition a lockable display thanks to a freely selectable security pin code.

Available in Tungsten, Daylight and RGBLA color versions.

Call for price

Category: Tags: , , ,

Description

Features Tungsten

  • Fixed white CCT: 3.200 K
  • Dual gobo rotator included (standard gobo size B)
  • IP rating: 65 (weatherproof)
  • Profile zoom from 14° to 35°
  • Electronic 16 bit dimming with 3 selectable curves (exponential, logarithmic or linear)
  • Synchronized, random or pulse electronic strobe
  • Flicker-free operation with LEDs frequency controlled via DMX from 600 to 19.000 Hz
  • Fan setting with 2 different options (auto, silent)
  • CE approved

Features Daylight

  • Fixed white CCT: 5.600 K
  • Dual gobo rotator included (standard gobo size B)
  • IP rating: 65 (weatherproof)
  • Profile zoom from 14° to 35°
  • Electronic 16 bit dimming with 3 selectable curves (exponential, logarithmic or linear)
  • Synchronized, random or pulse electronic strobe
  • Flicker-free operation with LEDs frequency controlled via DMX from 600 to 19.000 Hz
  • Fan setting with 2 different options (auto, silent)
  • CE approved

Features FullSpectrum RGBLA

  • RGBLA color mixing with hue and saturation control
  • CCT: all whites from 2.700 to 6.500 K
  • Dual gobo rotator included (standard gobo size B)
  • IP rating: 65 (weatherproof)
  • Profile zoom from 17° to 38°
  • Electronic 16 bit dimming with 3 selectable curves (exponential, logarithmic or linear)
  • Synchronized, random or pulse electronic strobe
  • Flicker-free operation with LEDs frequency controlled via DMX from 600 to 19.000 Hz
  • Fan setting with 2 different options (auto, silent)
  • CE approved



Datasheet
