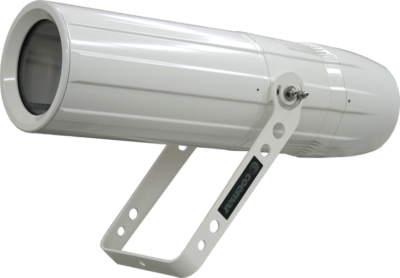

Coemar LEDko EXT Daylight Outdoor LED profile spot

The LEDko EXT family has been designed to meet the needs of architects and lighting designers, who were looking for weatherproof lighting fixtures suitable not only for temporary, but also for permanent outdoor installations.

LEDko EXT designed by Coemar Lighting is the only weatherproof spotlight suitable for permanent outdoor applications you will find on the market.

This unique IP 65 LED Profile Spot Light replicates the performance of the indoor version, including the four-blade framing system with the internal gobo holder (standard gobo size B). A zoom lens system ranging from 17° to 38° (FullSpectrum version) and from 14° to 35° (fixed white version), bare ends power input cable and in/out 5 pin XLR connectors for DMX signal rated IP 65 complete the product profile. The fixture has in addition a lockable display thanks to a freely selectable security pin code.

Fixed white CCT (3.200 K or 5.600 K) and RGBLA color versions available.

Call for price

Description

Features

  • Fixed white CCT: 5.600 K
  • IP rating: 65 (weatherproof)
  • Profile zoom from 14° to 35°
  • Four blade framing system, each shutter blade is adjustable for radial position and angle
  • Internal gobo holder (standard gobo size B)
  • Electronic 16 bit dimming with 3 selectable curves (exponential, logarithmic or linear)
  • Synchronized, random or pulse electronic strobe
  • Flicker-free operation with LEDs frequency controlled via DMX from 600 to 19.000 Hz
  • Fan setting with 2 different options (auto, silent)
  • CE approved

Light Source

  • Daylight COB LED (CRI 80 – CRI 90).
  • Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).

Control protocol and programming

  • USITT DMX512A
  • DMX channels: 5 / 1
  • Setting, addressing, testing and measurements via LEDs display
  • RDM (Remote Device Management)

Connections and electrical specifications

  • AC power: 85-264 V, auto-sensing, 50/60 Hz
  • Internal cable without power plug
  • Max power consumption: 200 W
  • Power consumption: 0.92 A at 230 V, 1.83 A at 115 V – cosφ 0,95
  • DMX data in/out: 5 pin locking XLR

Physical size

  • Length: 687.8 mm (27.07 in)
  • Width: 252.6 mm (9.94 in)
  • Height: 248 mm (7.0 in) – with mounting bracket: 405 mm (15.94 in)
  • Weight: 14.0 Kg (30.8 lbs)
